Piper ARCHER LX
The Perfect Aircraft for Every Pilot
From $349,000
Display prices only. Contact for current pricing.
Max Cruise Speed128 ktas
Range522 nm
Seats4
EngineLycoming IO-360-B4A
Useful Load870 lbs
Overview
The Piper ARCHER LX is the ideal gateway into aircraft ownership — combining proven reliability, modern avionics, and economical operating costs in one elegant package. Whether you're building flight hours, exploring cross-country travel, or simply enjoying the freedom of personal aviation, the ARCHER LX delivers confidence at every stage of your journey.
Reliable Performance
Powered by the legendary Lycoming IO-360-B4A engine producing 180 horsepower, the ARCHER LX delivers a top speed of 128 KTAS and a service ceiling of 14,100 feet. Its naturally aspirated powerplant is renowned for exceptional reliability and ease of maintenance, making it a favorite among both training fleets and private owners. With a range of 522 nautical miles and an efficient fuel burn of just 10.5 GPH, the ARCHER LX keeps operating costs sensible without sacrificing capability.
Modern Avionics
The ARCHER LX comes standard with the Garmin G1000 NXi integrated avionics suite, offering a full glass cockpit experience with high-resolution primary flight and multi-function displays. Synthetic vision technology provides intuitive situational awareness, while the GFC 700 autopilot reduces pilot workload on longer cross-country flights. It's the same world-class avionics package found in much more expensive aircraft — delivered at an approachable price point.
Comfortable Cabin
The ARCHER LX's four-seat cabin is thoughtfully designed to maximize comfort on every flight. Wide, contoured seats upholstered in premium materials, large panoramic windows, and generous headroom create an inviting environment for pilots and passengers alike. USB charging ports, cupholder storage, and an intuitive interior layout ensure that short hops and longer cross-country legs are equally enjoyable. Baggage capacity of 200 lbs rounds out the practical, passenger-friendly experience.
Ideal for Training & Personal Use
Universally recognized as one of aviation's finest trainers, the ARCHER LX offers docile, predictable handling that builds pilot confidence from the very first lesson. Its forgiving stall characteristics, stable low-speed handling, and intuitive controls make it an exceptional platform for student pilots progressing through their certificates. Yet its capability doesn't stop at the flight school ramp — the ARCHER LX is equally at home on family weekend getaways, offering the freedom and cost-effectiveness that defines personal aviation at its best.
Specifications
Specifications
| Maximum Cruise Speed | 128 ktas | Maximum Range | 522 nm |
| Service Ceiling | 14,100 ft | Takeoff Distance (50 ft obstacle) | 1,608 ft |
| Landing Distance (50 ft obstacle) | 1,400 ft |
All specifications are approximate and subject to change. Verify with manufacturer documentation.
Gallery
Media
Brochures & Video

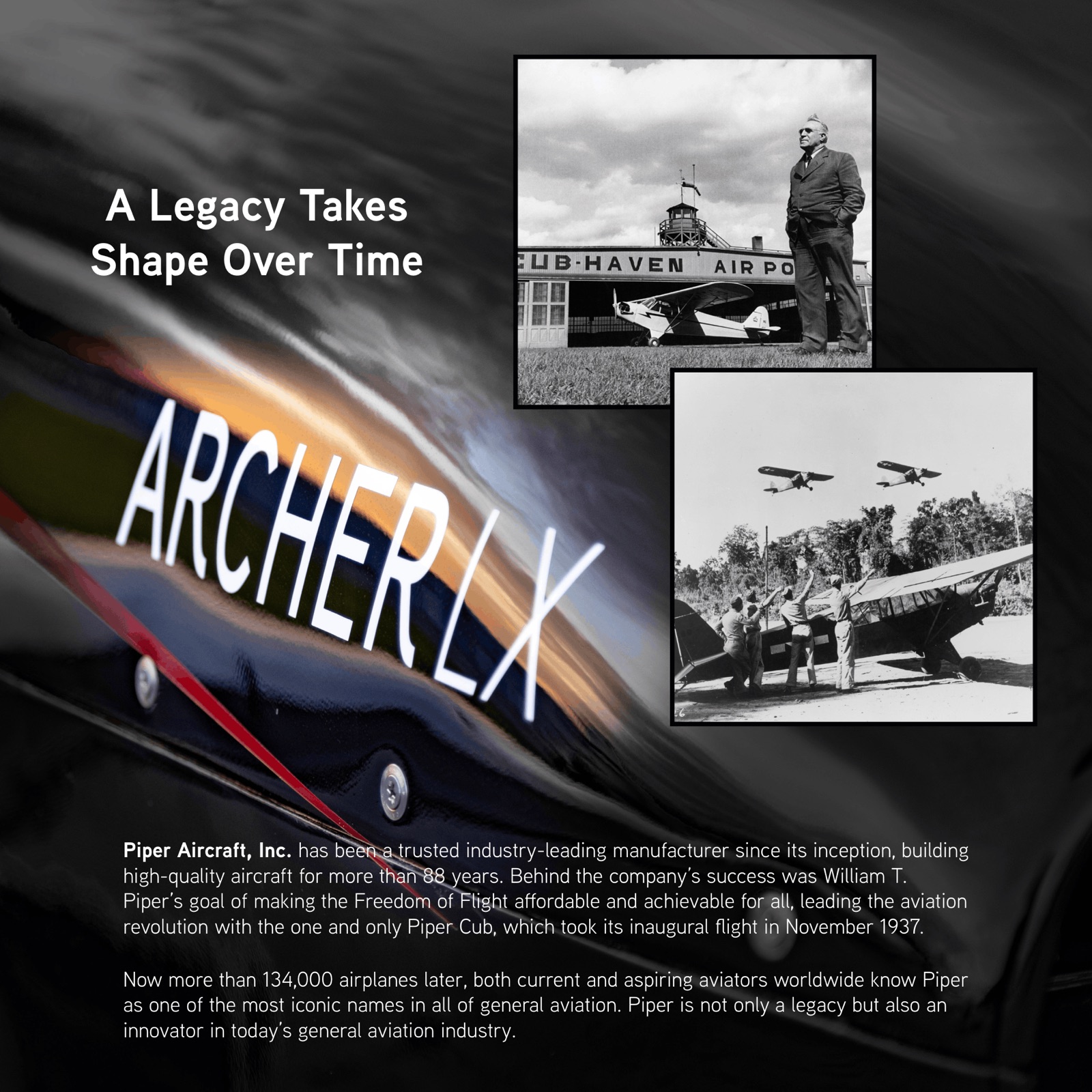

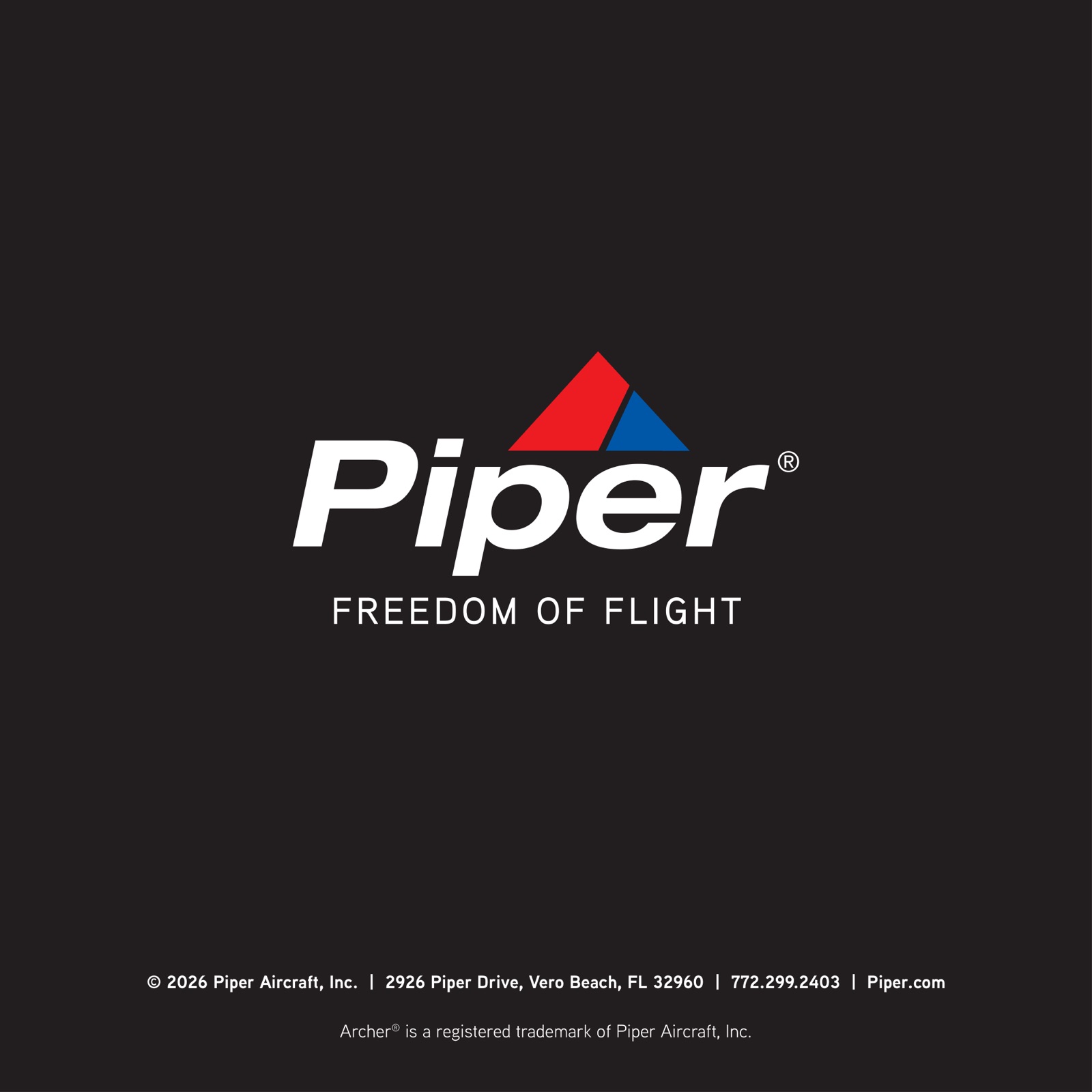

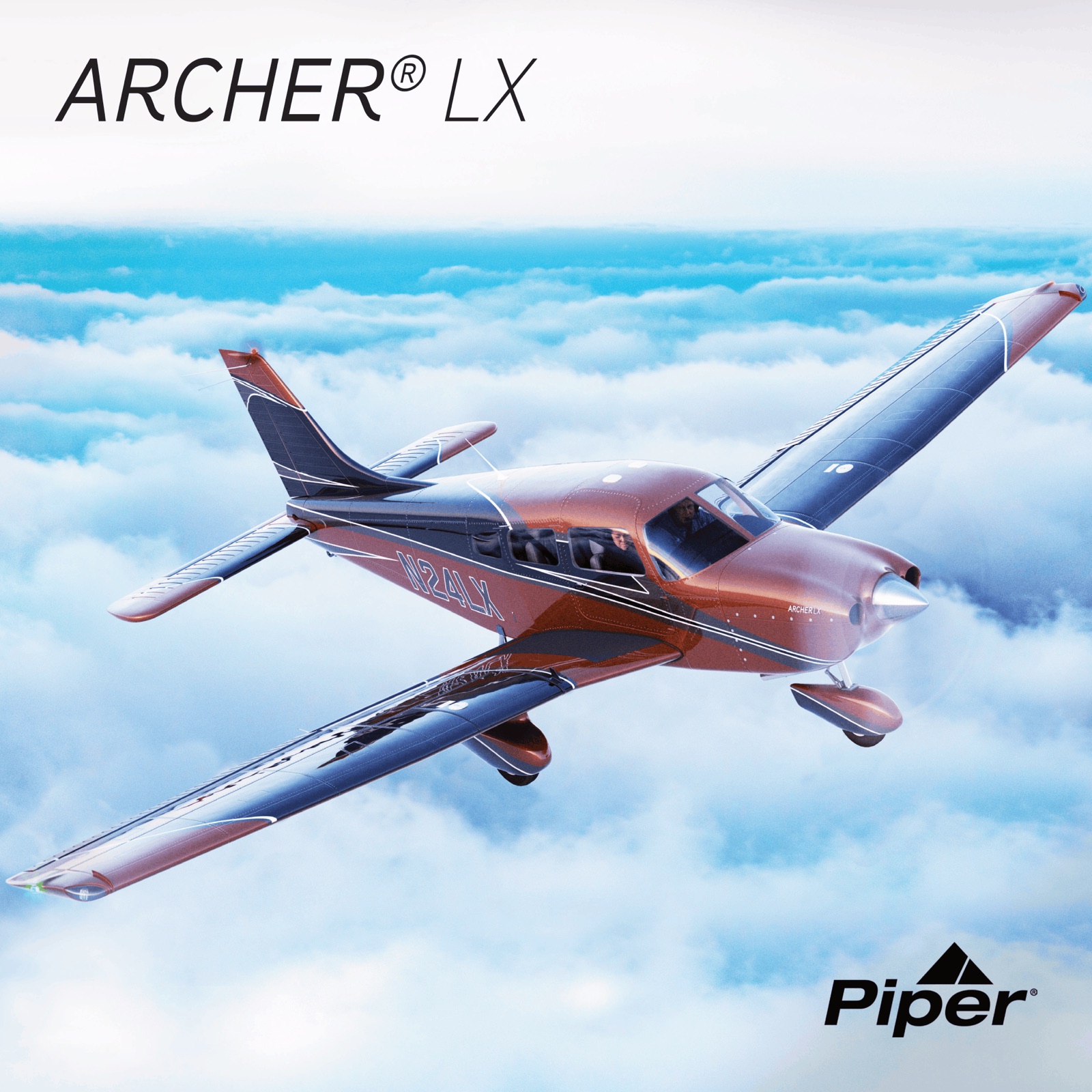

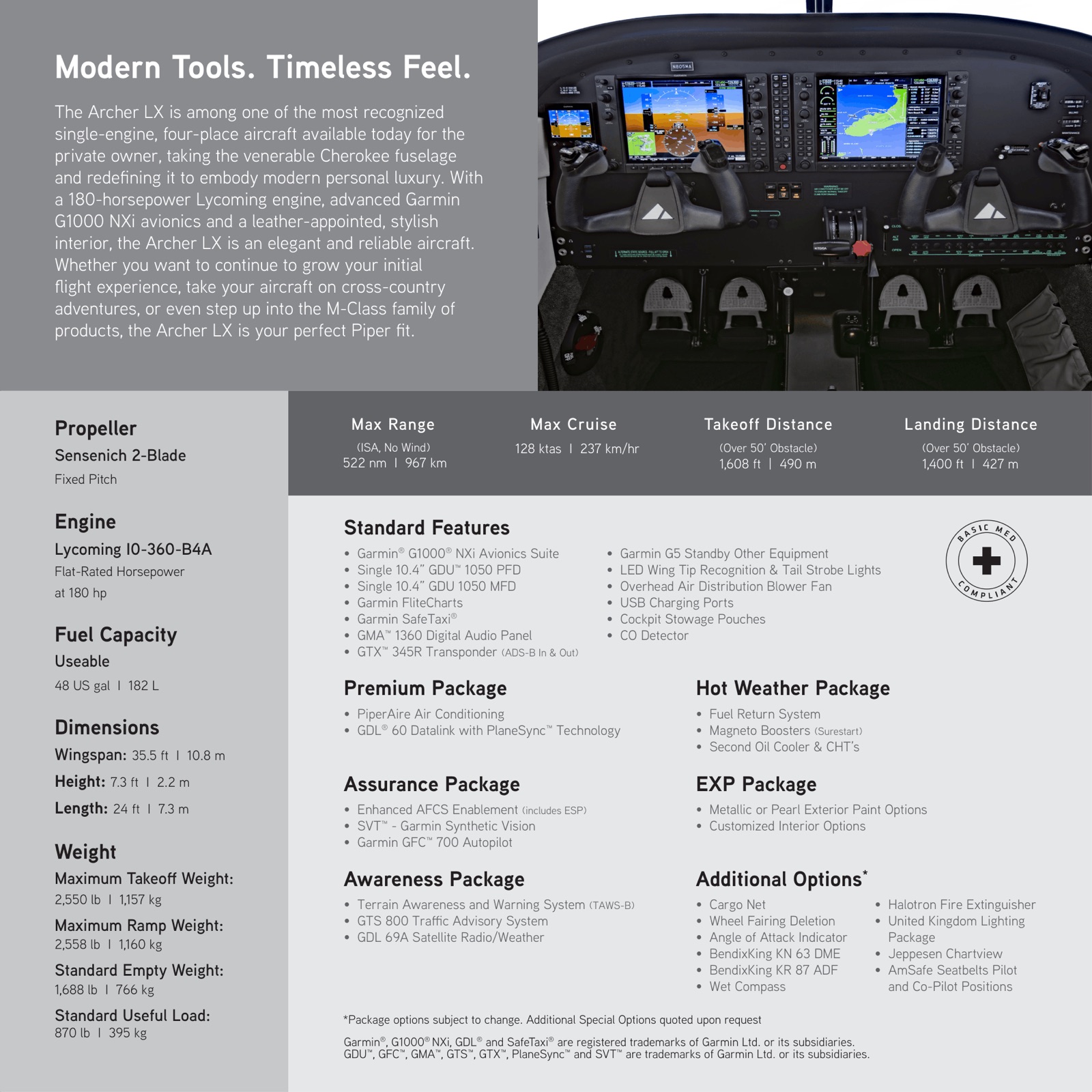

2026 Piper Archer LX Foldover
Inventory
Available ARCHER LX Aircraft
New
Active
Get In Touch
Interested in the ARCHER LX?
Our team of experienced aviation professionals is ready to answer your questions, arrange a demonstration flight, or walk you through current ARCHER LX availability. Reach out today and let us help you find the right aircraft.
